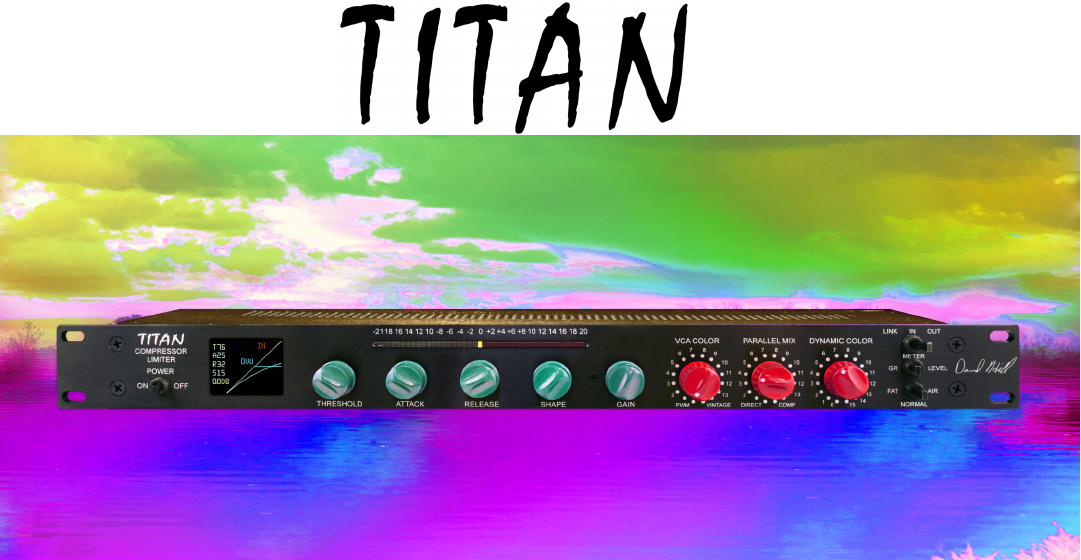

Crane-song TITAN User Manual

© 2012 Dave Hill DesignsCOMPRESSOR LIMITERMANUAL VER 1.12012002192117 E5th streetSuperior WI USA54880davehilldesigns.comSee the next page for startup

Start Up Settings 2Safety Information 3Introduction - The Controls 4LCD Reference 7Panel Guide (control range) 8Specifications 9SETTINGS TO START WITH

IMPORTANT SAFETY INSTRUCTIONS1. Read these instructions2. Keep these instructions3. Heed all warnings4. Follow all instructions5. Do not use this appa

INTRODUCTIONTitian is an analog compressor-limiter with a very large range of color and control choices that hasreset-ability. The main audio path is

COMPRESSOR COLOR – (VCA COLOR)The control provides a mix between a very clean PWM gain control device and a vintage gain controlelement. The vintage

STEREO LINKWhen stereo linked the unit selected as the control master will control all functions on the secondchannel. The LCD display will show whic

THRESHOLDATTACKRELEASEKNEE SHAPEMAKE UP GAININ - OUT - LINK STATUSKNEE SHAPE GRAPHTOP+25DBULCD DISPLAY REFERENCELCD CLEANINGFirst use care, the best w

LINE VOLTAGESELECTIONLINK CONNECTORCOMPRESSORCOLOR(VCA COLOR)PWM 0.018% THD@ +24 dbuVINTAGE13% THD @ +24dbuPARALLEL MIXDYNAMICCOLORMAKE UP GAIN0.5db

SPECIFICATIONSMaximum input: +25dbu balancedMaximum output: +25dbu balancedMake Up Gain: 0 to 11.5db, 0.5 stepsNoise: -91dbu, 20 KHz BWFrequency Respo
